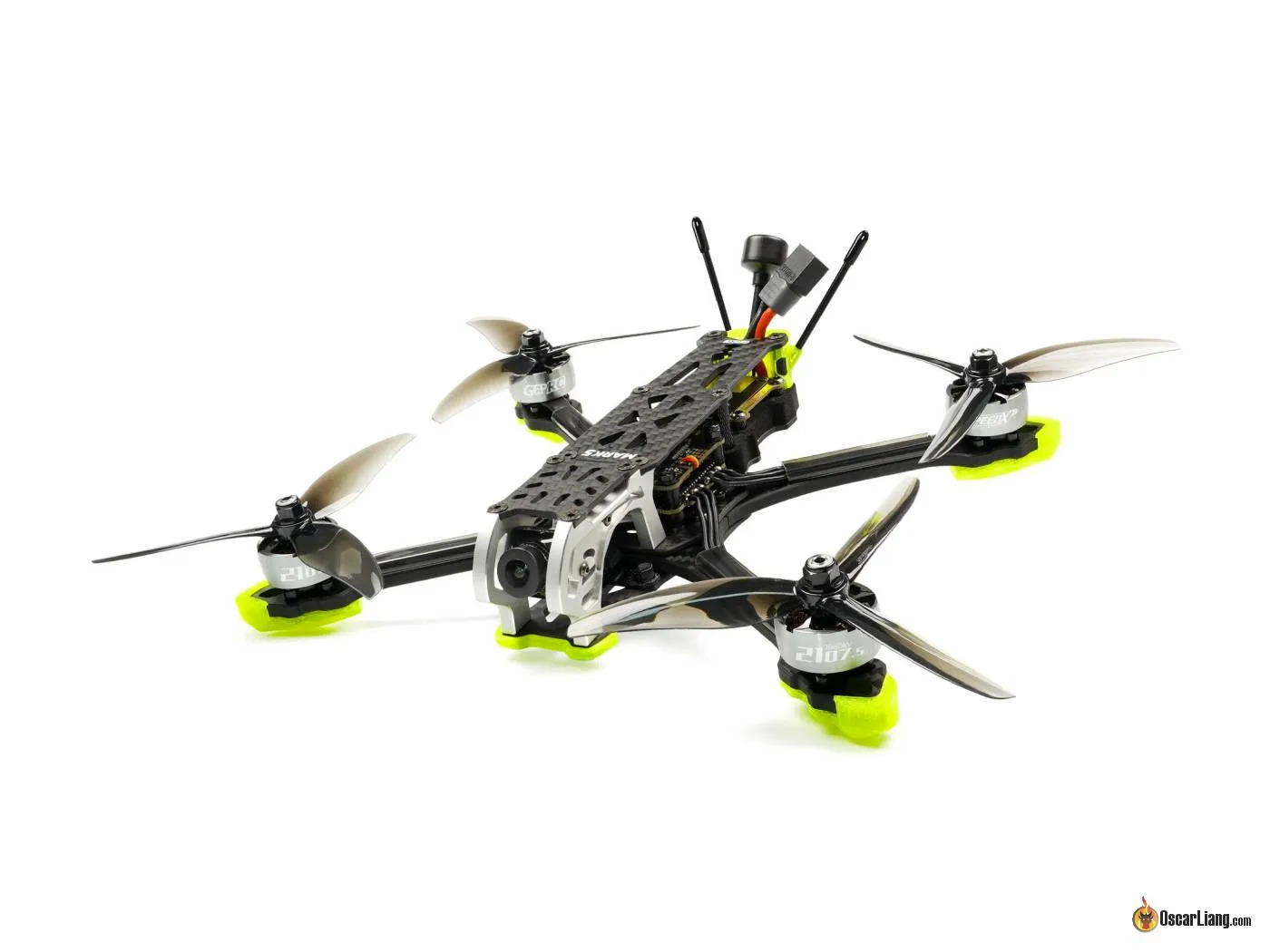

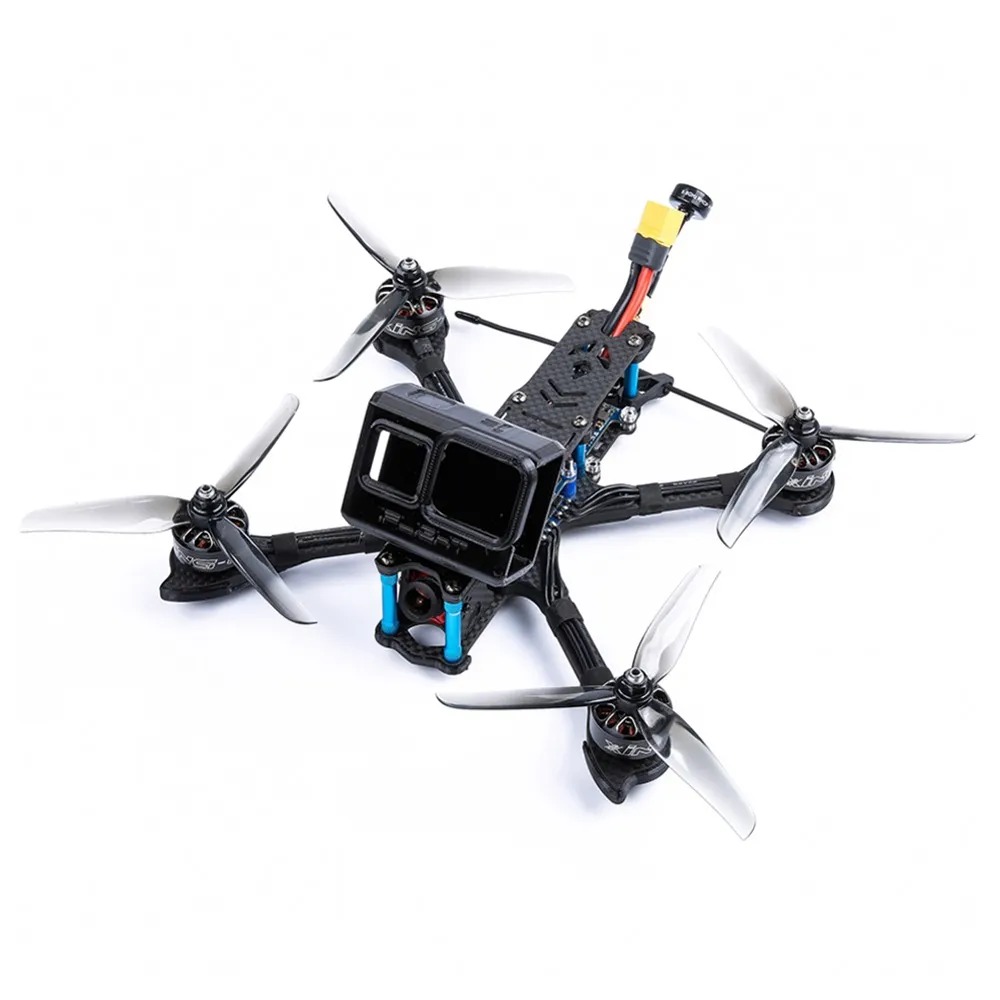

5 INCH DRONE (LONG RANGE)

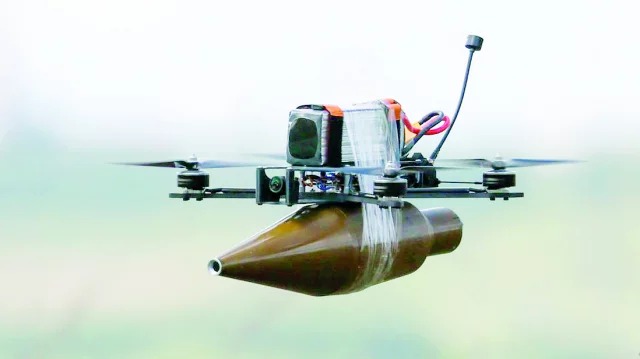

3 Inch FPV Drone (Indoor Use) • Purpose: Agile, indoor or close-range reconnaissance • Frame Size: 3 inch (approx. 150mm wheelbase) • Flight Controller: F4/F7 with Betaflight • Motors: 1404–1507, 3800–4200KV • Propellers: 3" • ESC: 20–35A 4-in-1 • Battery: 4S 650–850mAh LiPo • Camera: Caddx Ratel / Runcam Nano, HD option with DJI/Caddx Vista • VTX: 25–800mW (Analog or DJI digital) • Flight Time: 4–6 minutes • Payload: Minimal (e.g., small sensor) • Range: ~ 500 mtr • Weight: ~250g with battery ________________________________________ 5 Inch FPV Kamikaze Drone (High-Speed, Impact Delivery) • Purpose: High-speed impact or decoy attack • Frame Size: 5 inch (200–220mm) • Flight Controller: F7 with Betaflight/INAV • Motors: 2207 / 2306, 1800–2700KV • Propellers: 5" • ESC: 35–60A BLHeli_32 • Battery: 4S–6S (1300–1800mAh) • Camera: Low latency FPV + optional HD (Runcam Split, DJI) • VTX: 800mW or DJI O3 Air Unit • Flight Time: 4–8 minutes • Speed: 100+ km/h • Payload: ~500g (potential explosive payload) • Range: 2-8 km (depends on system) • Failsafe: Optional GPS rescue or manual kill switch • Weight: ~600–800g ________________________________________ 7 Inch FPV Drone (Dropping Payloads / Long Range) • Purpose: Medium payload dropping (e.g., medicine, surveillance) • Frame Size: 7 inch (280–310mm) • Flight Controller: F4/F7 • Motors: 2506–2814, 1200–1600KV • Propellers: 7" • ESC: 40–60A • Battery: 6S 3000–6000mAh Li-ion or LiPo • Camera: HD FPV (DJI / Walksnail) • VTX: Long range (DJI O3 / 2.4GHz / 1.2GHz) • Flight Time: 15–30 minutes • Payload Capacity: 1–1.5 kg • Drop Mechanism: Servo-based or electromagnetic • Range: 2–8 km • Weight: ~1.5–2 kg ________________________________________ Drone (Night Vision Surveillance) • Purpose: Recon / Surveillance with Night Vision • Frame Size: 10 inch (400–450mm) • Flight Controller: H7 / Pixhawk (Cube Orange) with Ardupilot • Motors: 2814–3115, 800–1200KV • Propellers: 10" • ESC: 50–80A • Battery: 6S–8S 6000–10000mAh Li-ion • Camera: HD FPV + Thermal/Night Vision (e.g., FLIR Boson, WIRIS) • VTX: Long-range 2.4GHz or DJI FPV system • Flight Time: 25–35 minutes • Range: 2–8 km (Depends on version) • Payload: 1.5–2 kg • Features: o IR + Optical zoom gimbal o GPS waypoint + RTL o Stabilized live feed • Weight: ~2.5–4 kg ________________________________________ 10 Inch FPV (Multiple Dropping Mechanism) • Purpose: Logistic drone with sequential payload release • Frame Size: 10 inch • Flight Controller: F4/F7 • Motors: 3115–4114, 500–900KV • Propellers: 10"–12" • ESC: 60–80A • Battery: 6S–8S 10000mAh or Li-ion pack • Camera: FPV + optional onboard HD • Dropping System: Multi-servo controlled, 2–4 drop bays • Payload: 2–3 kg total (divided into smaller pods) • Flight Time: 25–35 minutes • Range: 3–9 km (Depends on version) • Control: Ground station / manual override • Weight: ~1–2 kg
